Polypropylene Polysteel

Tiger Rope

Tiger Ropes combine a higher breaking strength, dimensional stability at an economical price. It has been produced keeping in mind its various applications in fishing, shipping, mooring ropes and for heavy industrial handling. 4-strand ropes are used to add further strength.

Physical characteristics

Higher breaking strength
Abrasion resistance
Excellent shock absorption
Better grip
Minimal elongation
Durable and ultraviolet stabilized
Excellent shape retention
Fully balanced and torque free

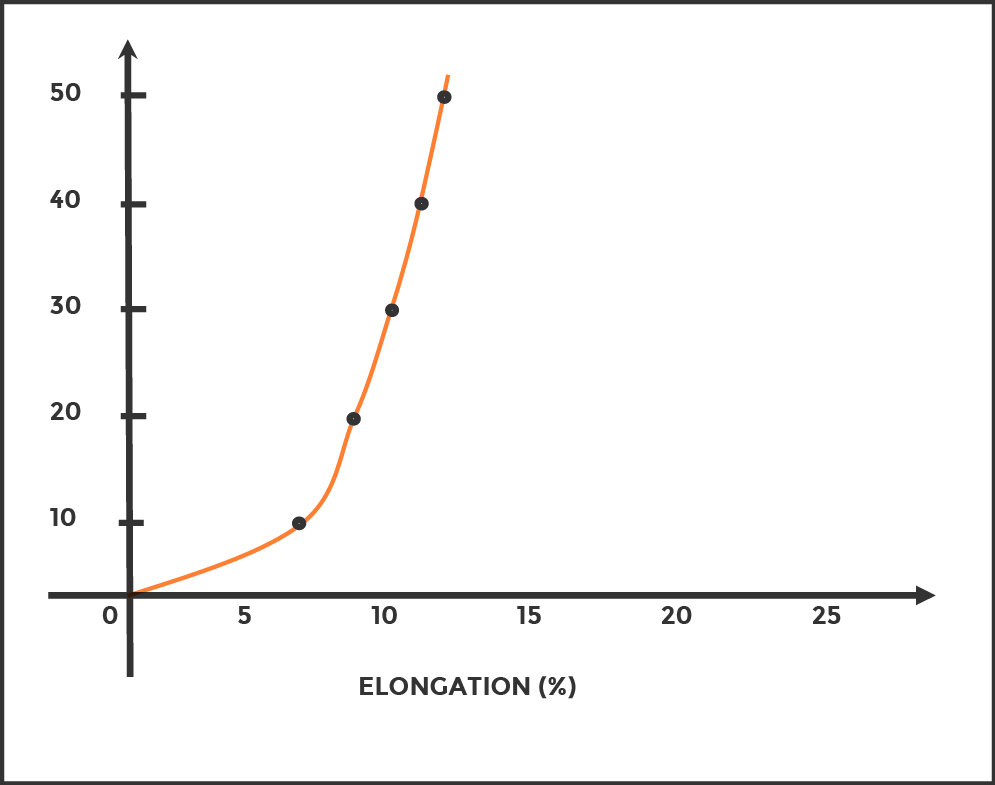

Percentage Elongation Tiger Rope

PERCENTAGE ELONGATION (STRETCH) OF POLYPROPYLENE ROPE

Order Specifications

Type of Fiber: Polypropylene
Length: Meter, Foot, Yard
Packing: Coil, Reel / Flange / Spool
Number of Strands: 3, 4, 8 & 12 Strands
Diameter, Circumference, number of Ply
Direction of Twist: 'Z' Twist / 'S' Twist
Lay: Soft, Medium, Hard, Extra Hard
Colours of Rope & tracer yarn required
Packing, Marking: HDPE / Raffia Cloth / Clear Shrink Wrap
Type Of Test Certificate required: Mills Compliance Certificate / DNV Germanischer Lloyds Certificate
Minimum Order Quantity: 9.5 Tons - 1 x 20' Container,
20 Tons - 1 x 40' Standard Container, 22 Tons - 1 x 40' High Cube Container

Properties

Material: Polypropylene
Construction: 3-4-8-12 Strand
Specific Gravity: 0.91
Melting Point: 165 °c
U.V Resistance: Stabilised (as per customer request)
Dry & Wet conditions: Identical Wet & Dry Strengths
Abrasion: Resistance Good
Classification: DNV-GL & Mills
Shock Absorption: Very Good
Elongation: Moderete 18% at Break
Water Absorption: None
Floating Ropes
Chemical Resistance
Acids: Excellent
Alkalis: Excellent
Oil/Gas: Very Good

Applications

3 & 4 strand ropes

Air sea rescue line
Blasting Mats
Buoy line
Car tow ropes
Control ropes
Crap rope
Ducting draw cords
Foot ropes
Ladder ropes
General Industrial
Marine use
Headlines
Mooring line

8 & 12 strand ropes

Shipping industry
Material handling for heavy industries
Ship mooring lines
Deep Sea Towing
Target Tow Ropes
Oceanographic Mooring
Harbour Towing, Supply Vessel
Supply Mooring Systems
Lifting Slings etc

Tiger Rope 3 & 4 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
6	1/4	3/4	3.67	3.34	8.07	7.34	59.95	196.62	770	1694	7.55	500
8	5/16	1	6.60	6.00	14.52	13.20	33.33	109.33	1345	2959	13.19	650
10	3/8	1-1/4	10.00	9.09	22.00	20.00	22.00	72.16	2000	4400	19.61	500
12	1/2	1-1/2	14.50	13.18	31.90	29.00	15.17	49.77	2840	6248	27.84	365
14	9/16	1-3/4	20.00	18.18	44.00	40.00	11.00	36.08	3905	8591	38.28	2000
16	5/8	2	25.50	23.18	56.10	51.00	8.63	28.30	4900	10780	48.04	1550
18	3/4	2-1/4	32.50	29.55	71.50	65.00	6.77	22.20	5500	12100	53.92	1200
20	13/16	2-1/2	40.00	36.36	88.00	80.00	5.50	18.04	7520	16544	73.73	1000
22	7/8	2-3/4	48.50	44.09	106.70	97.00	4.54	14.88	8450	18590	82.84	800
24	1	3	57.00	51.82	125.40	144.00	3.86	12.66	10200	22440	100.00	950
26	1-1/13	3-1/4	67.60	61.45	148.72	135.20	3.25	10.67	11870	26114	116.37	800
28	1-1/8	3-1/2	78.00	70.91	171.60	156.00	2.82	9.25	13540	29788	132.75	700
30	1-1/4	3-3/4	90.00	81.82	198.00	180.00	2.44	8.02	15482	34060	151.78	600
32	1-5/16	4	101.00	91.82	222.20	202.00	2.18	7.14	17425	38335	170.83	550
34	1-3/8	4-1/4	115.60	105.09	254.32	231.20	1.90	6.24	19262	42376	188.84	500
36	1-7/16	4-1/2	129.00	117.27	283.80	258.00	1.71	5.59	21100	46420	206.86	450
40	1-5/8	5	158.00	143.64	347.60	316.00	1.39	4.57	24980	54956	244.90	350
44	1-3/4	5-1/2	193.50	175.91	425.70	387.00	1.14	3.73	30165	66363	295.74	850
48	1-15/16	6	229.00	208.18	503.80	458.00	0.96	3.15	35350	77770	346.57	750
52	2-1/16	6-1/2	268.00	243.64	589.60	536.00	0.81	2.67	43400	95480	425.49	650
56	2-1/4	7	312.00	283.64	686.40	624.00	0.71	2.31	49400	108680	484.31	600
60	2-3/8	7-1/2	358.00	325.45	787.60	716.00	0.61	2.01	56200	123640	550.98	500
64	2-1/2	8	407.00	370.00	895.40	814.00	0.54	1.77	64100	141020	628.43	450
68	2-15/16	8-1/2	460.00	418.18	1012.00	920.00	0.48	1.57	72200	158840	707.84	400
70	2-3/4	8-11/16	486.00	441.82	1069.20	972.00	0.45	1.48	76200	167640	747.06	365
72	2-7/8	9	514.00	467.27	1130.80	1028.00	0.43	1.40	80200	176440	786.27	350
76	3	9-1/2	574.00	521.82	1262.80	1148.00	0.38	1.26	89300	196460	875.49	330
80	3-5/32	10	638.00	580.00	1403.60	1276.00	0.34	1.13	98400	216480	964.71	280
84	3-1/2	10-1/2	705.00	640.91	1551.00	1410.00	0.31	1.03	108300	238260	1061.76	250
88	3-15/16	11	772.00	701.82	1698.40	1544.00	0.26	0.85	118700	261140	1163.73	220
96	3-3/4	12	917.00	833.64	2017.40	1834.00	0.24	0.79	140600	309320	1378.43	200
100	4	12-1/2	994.00	903.64	2186.80	1988.00	0.22	0.72	151200	332640	1482.35	183

Tiger Rope 8 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
40	1-5/8	5	158.00	143.64	347.60	316.00	1.39	4.57	28000	61600	274.51	270
44	1-3/4	5-1/2	193.60	176.00	425.92	387.20	1.14	3.73	33750	74250	330.88	220
48	1-15/16	6	229.00	208.18	503.80	458.00	0.96	3.15	39500	86900	387.25	520
52	2-1/16	6-1/2	270.40	245.82	594.88	540.80	0.81	2.67	45750	100650	448.53	450
56	2-1/4	7	312.00	283.64	686.40	624.00	0.71	2.31	52000	114400	509.80	380
60	2-3/8	7-1/2	359.00	326.36	789.80	718.00	0.61	2.01	59500	130900	583.33	330
64	2-1/2	8	407.00	370.00	895.40	814.00	0.54	1.77	67550	148610	662.25	290
68	2-15/16	8-1/2	460.00	418.18	1012.00	920.00	0.48	1.57	76000	167200	745.10	260
72	2-7/8	9	515.00	468.18	1133.00	1030.00	0.43	1.40	84500	185900	828.43	450
76	3	9-1/2	574.00	521.82	1262.80	1148.00	0.38	1.26	94000	206800	921.57	400
80	3-1/4	10	638.00	580.00	1403.60	1276.00	0.34	1.13	104000	228800	1019.61	350
84	3-1/2	10-1/2	703.00	639.09	1546.60	1406.00	0.31	1.03	114000	250800	1117.65	320
88	3-15/16	11	772.00	701.82	1698.40	1544.00	0.28	0.93	125000	275000	1225.49	300
92	3-7/8	11-1/2	846.00	769.09	1861.20	1692.00	0.26	0.85	136000	299200	1333.33	270
96	3-3/4	12	916.00	832.73	2015.20	1832.00	0.24	0.79	148000	325600	1450.98	250
100	4	12-1/2	1000.00	909.09	2200.00	2000.00	0.22	0.72	159166	350165.2	1560.45	220
104	4-1/2	13	1078.00	980.00	2371.00	2155.45	0.20	0.67	169500	372900	1661.76	220
*112	1-7/8	14	-	1026.40	-	2258.00	0.17	0.55	195600	430320	1917.65	*180
*116	4-3/4	14-1/2	-	1008.60	-	2218.00	0.16	0.52	207030	455466	2029.71	*170
*120	5	15	-	1047.00	-	2303.00	0.15	0.49	224600	494120	2201.96	*160

Tiger Rope 12 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
52	2-1/16	6-1/2	274.00	249.09	602.80	548	0.80	2.63	47400	104280	464.71	900
56	2-1/4	7	316.00	287.27	695.20	632.00	0.70	2.28	55100	121220	540.20	800
60	2-3/8	7-1/2	364.00	330.91	800.80	728.00	0.60	1.98	61700	135740	604.90	700
64	2-1/2	8	413.00	375.45	908.60	826.00	0.53	1.75	70500	155100	691.18	600
68	2-15/16	8-1/2	470.00	427.27	1034.00	940.00	0.47	1.54	79800	175560	782.35	550
72	2-7/8	9	523.00	475.45	1150.60	1046.00	0.42	1.38	89200	196240	874.51	500
76	3	9-1/2	586.00	532.73	1289.20	1172.00	0.38	1.23	98500	216700	965.69	450
80	3-5/32	10	648.00	589.09	1425.60	1296.00	0.34	1.11	108400	238480	1062.75	400
84	3-1/2	10-1/2	716.00	650.91	1575.20	1432.00	0.31	1.01	117800	259160	1154.90	350
88	3-7/16	11	787.00	715.45	1731.40	1574.00	0.28	0.92	127700	280940	1251.96	320
96	3-13/16	12	934.00	849.09	2054.80	1868.00	0.24	0.77	150800	331760	1478.43	270
104	4-1/2	13	1095.00	995.45	2409	2190.00	0.20	0.66	171700	377740	1683.33	220
108	4-15/16	13-1/2	1166.00	1060.0	2565.2	2332.00	0.19	0.62	186000	409200	1823.52	220
*112	1-7/8	14	-	1124.5	-	2474	0.17	0.56	200200	440440	1962.74	*200
*120	5	15	-	1200	-	2640	0.15	0.49	231600	509520	2270.58	*180
