Axiom

Polypropylene – Polyester Mix

Super Flex

High tenacity Polypropylene & Polyester Mix composite fibres

Physical characteristics

Strength is equal when wet or dry.
High strength to weight ratio for ease of handling.
Excellent abrasion resistance against internal and external friction.
Exceptional resistance to frictional heat damage.
Manufactured in accordance with OCIMF guidelines.
TCLL value of 73%. TCLL is the actual breaking load of a wet rope after 1000 cyclical loadings. This is expressed as a percentage of the original wet breaking strength.
Excellent shock - load absorption, yielding low snapback at break.
Remains flexible & easy to splice in use.
Does not absorb water.
Excellent chemical resistance, except in the presence of alkalis.

Order Specifications

Type of Fiber: Polypropylene and polyester mix
Length: Meter, Foot, Yard
Packing: Coil, Reel / Flange / Spool
Number of Strands: 3, 4, 8 & 12 Strands
Diameter, Circumference, number of Ply
Direction of Twist: 'Z' Twist / 'S' Twist
Lay: Soft, Medium, Hard, Extra Hard
Colours of Rope & tracer yarn required
Packing, Marking: HDPE / Raffia Cloth / Clear Shrink Wrap
Type Of Test Certificate required: Mills Compliance Certificate / DNV Germanischer Lloyds Certificate
Minimum Order Quantity: 9.5 Tons - 1 x 20' Container,
20 Tons - 1 x 40' Standard Container, 22 Tons - 1 x 40' High Cube Container

Properties

Construction: 3-4-8-12 Strand
Colour: White
Marker: 2 Blue Marker Yarn
Specific Gravity: 0.99 - 1.14
Melting Point: 265 °c / 165 °c
U.V Resistance: Good (as per customer request)
Dry & Wet Conditions: Identical Wet & Dry Strengths
Abrasion Resistance: Excellent
Classification: DNV Gl & Mills
Bending Ratio: Equally Dry & Wet
Elongation at Breaking Point: 18%
Floats/sinks: As Per Special Request

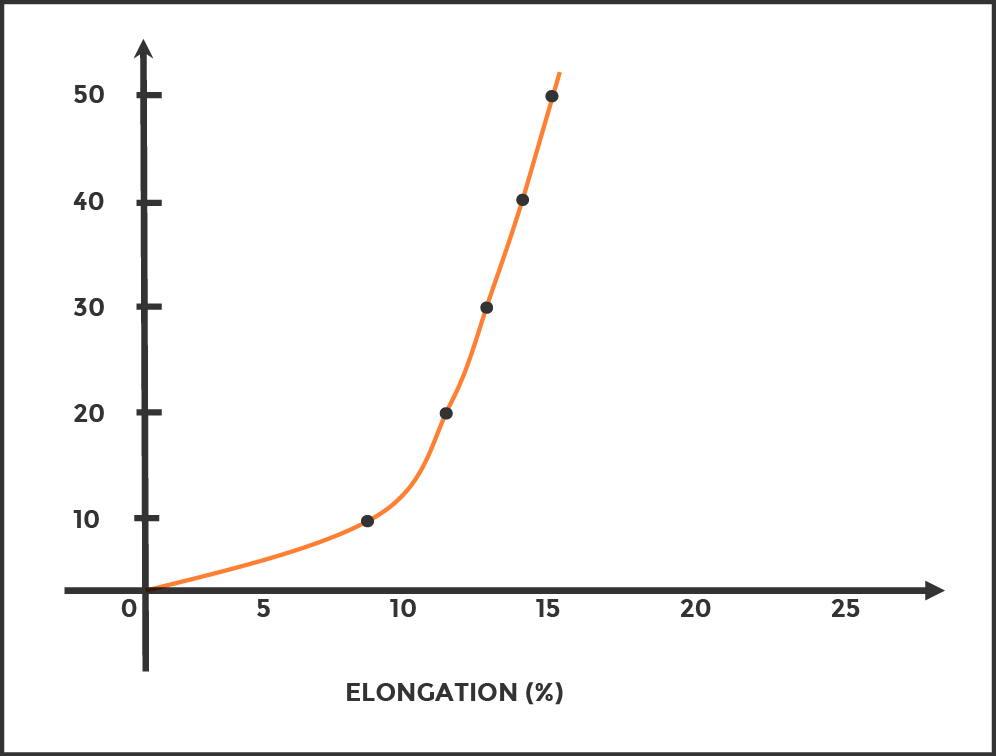

Percentage Elongation Super Flex

PERCENTAGE ELONGATION (STRETCH) OF PP POLYESTER ROPE

Applications

Towing stretchers.
Single Point moorings.
Mooring lines.
Mooring Jaws

Super Flex 3 & 4 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
6	1/4	3/4	3.92	3.56	8.62	7.84	59.95	196.62	808	1778	7.92	500
8	5/16	1	7.06	6.42	15.53	14.12	33.33	109.33	1412	3107	13.85	650
10	3/8	1-1/4	10.70	9.73	23.54	21.40	22.00	72.16	2100	4620	20.59	500
12	1/2	1-1/2	15.51	14.10	34.12	31.02	15.17	49.77	2982	6560	29.24	365
14	9/16	1-3/4	21.40	19.45	47.08	42.80	11.00	36.08	4100	9021	40.20	2000
16	5/8	2	27.28	24.80	60.02	54.56	8.63	28.30	5145	11319	50.44	1550
18	3/4	2-1/4	34.77	31.61	76.49	69.54	6.77	22.20	5775	12705	56.62	1200
20	13/16	2-1/2	42.80	38.91	94.16	85.60	5.50	18.04	7896	17371	77.41	1000
22	7/8	2-3/4	53.50	48.64	117.70	107.00	4.54	14.88	8873	19520	86.99	800
24	1	3	60.99	55.45	134.18	121.98	3.86	12.66	10710	23562	105.00	950
26	1-1/13	3-1/4	72.33	65.75	159.13	144.66	3.25	10.67	12464	27420	122.19	800
28	1-1/8	3-1/2	83.46	75.87	183.61	166.92	2.82	9.25	14217	31277	139.38	700
30	1-1/4	3-3/4	96.30	87.55	211.86	192.60	2.44	8.02	16256	35763	159.37	600
32	1-5/16	4	107.06	97.33	235.53	214.12	2.18	7.14	18296	40252	179.38	550
34	1-3/8	4-1/4	123.69	112.45	272.12	247.38	1.90	6.24	20225	44495	198.29	500
36	1-7/16	4-1/2	138.03	125.48	303.67	276.06	1.71	5.59	22155	48741	217.21	450
40	1-5/8	5	169.06	153.69	371.93	338.12	1.39	4.57	26229	57704	257.15	350
44	1-3/4	5-1/2	207.04	188.22	455.49	414.08	1.14	3.73	31673	69681	310.52	900
48	1-15/16	6	242.74	220.67	534.03	485.48	0.96	3.15	38405	84491	376.00	800
52	2-1/16	6-1/2	284.08	258.25	624.98	568.16	0.81	2.67	45136	99299	442.51	650
56	2-1/4	7	330.72	300.65	727.58	661.44	0.71	2.31	51376	113027	503.69	550
60	2-3/8	7-1/2	379.42	344.93	834.72	758.84	0.61	2.01	58448	128586	573.02	500
64	2-1/2	8	431.42	392.20	949.12	862.84	0.54	1.77	66664	146661	653.57	450
68	2-15/16	8-1/2	487.60	443.27	1072.72	975.20	0.48	1.57	75088	165194	736.16	400
70	2-3/4	8-11/16	515.16	468.33	1133.35	1030.32	0.45	1.48	79248	174346	776.94	350
72	2-7/8	9	544.84	495.31	1198.65	1089.68	0.43	1.40	83408	183498	776.94	330
76	3	9-1/2	608.44	553.13	1338.57	1216.88	0.38	1.26	92872	204318	910.51	300
80	3-5/32	10	676.28	614.80	1487.82	1352.56	0.34	1.13	102336	225139	1003.29	265
84	3-1/2	10-1/2	747.30	679.36	1644.06	1494.60	0.31	1.03	112632	247790	1104.24	250
88	3-15/16	11	818.32	743.93	1800.30	1636.64	0.26	0.85	123448	271586	1210.27	220
96	3-3/4	12	972.02	883.65	2138.44	1944.04	0.24	0.79	146224	321693	1433.57	200
100	4	12-1/2	1053.64	957.85	2318.01	2107.28	0.22	0.72	157248	345946	1541.65	165

Super Flex 8 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
36	1-7/16	4-1/2	132.00	120.00	290.40	264.00	1.67	5.47	24800	54560	243	300
40	1-5/85	5	192.50	175.00	423.50	385.00	1.14	3.75	34200	75240	335	250
44	1-3/4	5-1/2	228.80	208.00	503.36	457.60	0.96	3.15	40800	89760	400	500
48	1-15/16	6	264.00	240.00	580.80	528.00	0.83	2.73	47400	104280	465	450
52	2-1/16	6.5	310.20	282.00	682.44	620.40	0.71	2.33	55500	122100	544	375
56	2-1/4	7	345.40	314.00	759.88	690.80	0.64	2.09	63200	139040	620	350
60	2-3/8	7.5	402.60	366.00	885.72	805.20	0.55	1.79	72400	159280	710	300
64	2-1/2	8	453.20	412.00	997.04	906.40	0.49	1.59	81600	179520	800	250
68	2-15/16	8.5	510.40	464.00	1122.88	1020.80	0.43	1.41	91800	201960	900	400
72	2-7/8	9	567.60	516.00	1248.72	1135.20	0.39	1.27	102000	224400	1000	350
76	3	9.5	622.60	566.00	1369.72	1245.20	0.35	1.16	112000	246400	1098	350
80	3-1/4	10	701.80	638.00	1543.96	1403.60	0.31	1.03	125000	275000	1225	300
88	3-15/16	11	836.00	760.00	1839.20	1672.00	0.26	0.86	148000	325600	1451	250
96	3-3/4	12	983.40	894.00	2163.48	1966.80	0.22	0.73	174000	382800	1706	240
104	4-1/2	13	1155.00	1050.00	2541.00	2310.00	0.19	0.62	198300	436260	1944	220
*112	1-7/8	14	-	1254.00	-	2758.80	0.18	0.58	230800	507760	2263	*180
*120	5	15	-	1120	-	2464	0.20	0.64	263000	578600	2578.43	*160

Super Flex 12 Strand

Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	MBL			Maximum Length Mtr.
Dia. mm	Dia. Inch	Cir. inch	Wt. Per 220 Mtrs. in Kgs.	Wt. Per 200 Mtrs. in Kgs.	Wt. Per 220 Mtrs. in Lbs.	Wt. Per 200 Mtrs. in Lbs.	Mtr/ Kg	Feet/ Kg	Kgf	Lbs	KN	Maximum Length Mtr.
52	2-1/16	6-1/2	327.00	297.27	719.40	654.00	0.67	2.21	64300	141460	630	800
56	2-1/4	7	371.00	337.27	816.20	742.00	0.59	1.95	72800	160160	714	700
60	2-3/8	7-1/2	417.00	379.09	917.40	834.00	0.53	1.73	81200	178640	796	600
64	2-1/2	8	463.00	420.91	1018.60	926.00	0.48	1.56	90400	198880	886	500
68	2-15/16	8-1/2	540.00	490.91	1188.00	1080.00	0.41	1.34	104100	229020	1021	490
72	2-7/8	9	586.00	532.73	1289.20	1172.00	0.38	1.23	113100	248820	1109	450
76	3	9-1/2	692.00	629.09	1522..40	1384.00	0.32	1.04	134100	295020	1315	380
80	3-1/4	10	765.00	695.45	1683.00	1530.00	0.29	0.94	148100	325820	1452	340
88	3-15/16	11	912.00	829.09	2006.40	1824.00	0.24	0.79	175100	385220	1717	275
96	3-3/4	12	1075.00	977.27	2365.00	2150.00	0.20	0.67	205100	451220	2011	240
104	4-1/2	13	1237.00	1124.55	2721.40	2474.00	0.18	0.58	235100	517220	2305	220
*112	1-7/8	14	-	1310.00	-	2882.00	0.15	0.49	268000	589600	2627	*200
*120	5	15	-	1350.00	-	2970.00	0.13	0.42	307500	676500	3014	*180
